“V” Shaped Subsoiler Ripper
For use with tractors in the 44 – 250hp range
Features:
- Deep soil mulching action reduces water erosion and helps farmers produce the highest yield possible while complying with today’s strict conservation and erosion regulations.
- Provides a deep, clean “slice” that breaks up hardpan to increase water intake, reduce run off and enhance root structure environment for superior crop growth.
- Keeps moist soil beneath the surface and away from the sun and wind.
- Mainframe constructed of high strength 7” (178mm) x 7” (178mm) x 3/8” (10mm) welded square tubing.
- Bolt on shanks and coulters permit quick changes in spacing when desirable.
- Shanks are shear bolt protected.
- Up to 32” (813mm) maximum depth of penetration.
- Gauge wheels assure accurate penetration control in shallow or deep applications.
- Available for category II, III, and IV three point hitches.
Specifications:
Series RVR “V” Shaped Subsoiler Ripper
| Model Number | Frame Width ft/in (m) | Number of Shanks | ShankSpacing in (mm) | Suggested Engine Horsepower | Net Weight lbs (kg) |
| RVR14-190 | 14’-0” (4.3) | 1 | CENTERED | 44 – 74 | 3018 (1369) |
| RVR14-390 | 14’-0” (4.3) | 3 | 24” – 36” (610-914) | 132 – 162 | 3600 (1633) |
| RVR14-590 | 14’-0” (4.3) | 5 | 24” – 36” (610-914) | 220 – 250 | 4501 (2042) |
Note: Please specify three point arrangement when ordering.
Standard Equipment:
- Heavy duty 7” (178mm) x 7” (178mm) x 3/8” (10mm) square tube framework.

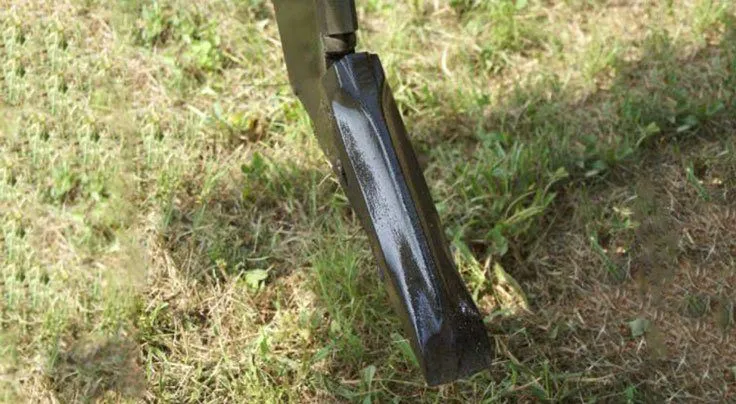

- 1-1/4” (32mm) x 8” (203mm) high strength steel shanks.
- 20° forward swept shanks that are shear bolt protected.
- Two gauge wheels with six bolt hubs.
- Operator’s manual container.
Optional Equipment:
- 20” (508mm) diameter spring loaded coulters.
