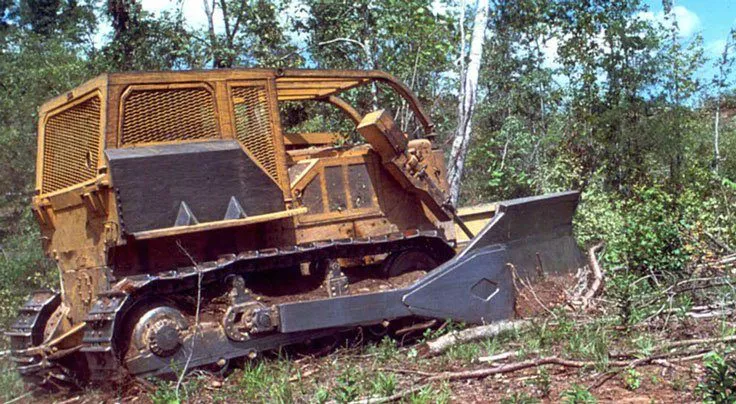

Vee Blade Cutter
Compatible with any track-type tractor
Features:
- Ruggedly built with all-welded construction . . . for maximum strength, rigidity and durability to assure long life with a minimum of maintenance.
- Excellent balance and floatation for better footing on soft ground.
- Serrated blades of tough T-1 steel shear small trees and vegetation off at ground level and windrow to one side . . . all in one pass.
- Center-mounted knife-sharp “stinger” splits and weakens large trees by concentrating full weight and horsepower of the tractor into powerful splitting and shearing force.
- Cutting patterns can be in any direction to meet wind and terrain conditions which might otherwise limit movement of the tractor.
- Rapid, economical removal of all vegetation at ground level with a minimum of soil disturbance.
Specifications:
Series RV Vee Blade Cutter
| Model Number | Overall Dimensions | Approx. Weight lbs (kg) | ||
| Length* ft/in (m) | Width* ft/in (m) | Height* ft/in (m) | ||
| RV | 22’-4” (6.8) | 13’-1” (4.0) | 4’-2” (1.3) | 10,839 (4917) |
| COMPATIBLE WITH ANY MAKE AND MODEL TRACK-TYPE TRACTOR | ||||
*Model number, length, width, height, and weight will vary depending on make and model of tractor. Length is measured from trunnion to stinger tip.
Standard Equipment:
- T-1 cutting edges and stinger.
- C-frame.
