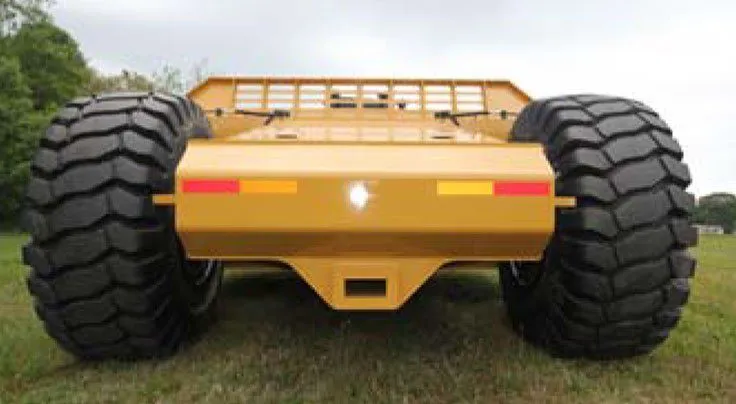

Heavy Duty Ejector Scraper
For use with tractors in the 375 - 600 hp range
Features:
- Rugged 23 yd³ (17.6m³) scraper with heavy duty plate frame construction for maximum strength and rigidity.
- Rear cross member made from 10” (254mm) x 10” (254mm) x 3/4” (20mm) thick fabricated box section steel.
- Spreader bar made from 14” (357mm) x 14” (357mm) x 3/4” (20mm) thick fabricated box section steel.
- 3-1/2” (89mm) thick floor protects against pan deflection from heavy material loads and floor wear from abrasion.
- Tandem hitch capability.
- “Slip-in” bolted spindle and hub assembly.
- Highest quality hydraulic cylinders have ball joints on both base and rod ends for long life.
- Push block protects scraper rear when push loading is necessary in tough loading conditions.
- Main cutting edge is a multi-piece design making it easy to change a single section of the blade.
- Ejector is supported with six rollers that are built with wheel hub style components for easy maintenance and maximum life.
Specifications:
Series RP-212HDE Heavy Duty Ejector Scraper
| Width of Cut | 12’‐6” (3.8m) | |
| Struck Capacity | 18yd³ (13.8m | |
| Heaped Capacity | 23yd³ (17.6m³) | |
| Payload Heaped Capacity | 58,590 (26,576kg) | |
| Overall Dimensions | Length | 29’‐9” (9.1m) |
| Width | 13’‐11” (4.2m) | |
| Height | 7’‐6” (2.3m) | |
| Bowl Dimensions | Height | 4’‐2” (1.3m) |
| Depth of Spread | 20” (0.5m) | |
| Depth of Cut | 5” (127mm) | |
| Width Outside to Outside of Tires | 12’‐6” (3.8m) | |
| Transport Clearance | 18” (457mm) | |
| Shipping Weight | 29,157 (13,225kg) | |
| Scraper Weight Distribution | Tongue | 21% |
| Wheels: | 79% | |
| Number of Tires | 2 | |
| Tire Size | 29.5 x 25 | |
| Floor Thickness | 3‐1/2” (89mm) | |
| Reversible Cutting Edges | Yes | |
| Tandem Kit Available | Yes | |
| Loading Type | Direct | |
| Laser/GPS Adaptable | Yes | |
| Hitch Type | Yoke | |
| Special Tractor Drawbar | Required | |
| Suggested Engine Horsepower | 400 – 600 | |
*Engine horsepowers are suggested ranges and vary according to soil conditions and weight added to scraper.
NOTE: This scraper requires hydraulic control. Two rear tractor hydraulic circuits required for scraper operation.
