Ejector Scraper
For use with tractors in the 360 – 600hp range
Features:
- Designed for use in agriculture; general, road, and levee construction; site preparation; pond building; cutting and maintaining irrigation ditches; and land leveling.
- Scraper features moving ejector to push materials over a fixed blade.
- Low tongue-weight ratio reduces drawbar weight and lessens the weight on the tractors rear axle for improved service life.
- Industry largest 3” (76mm) pins with replaceable bushings used throughout the implement provides improved durability in the roughest conditions.
- Laser or GPS adaptable.
- Optisurface compatible.
- Available with a straight fixed blade for agricultural uses or with a staggered frost bit blade for construction type applications.
- Heavy duty router bits with two mounting positions. Once the bits wear just lower to the second mounting position to give the bits double the life expectancy.
Specifications:

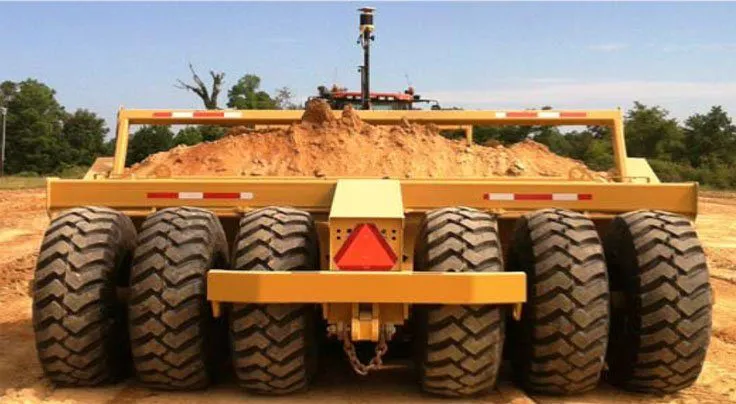

Series 18E14.5 Ejector Scraper
| Width of Cut | 14’‐6” (4.4m) | |
| Struck Capacity | 15yd³ (11.5m³) | |
| Heaped Capacity | 18yd³ (13.8m³) | |
| Payload Heaped Capacity | 52,210 (23,682kg) | |
| Overall Dimensions | Length | 27’‐9” (8.4m) |
| Width | 16’‐1” (4.9m) | |
| Height | 6’‐7” (2.0m) | |
| Bowl Dimensions: | Length | 8’‐0” (2.4m) |
| Width | 14’‐6” (4.4m) | |
| Height | 4’‐4” (1.3m) | |
| Width Outside to Outside of Tires | 14’‐6” (4.4m) | |
| Transport Clearance | 20” (508mm) | |
| Shipping Weight | 27,790 (12,605kg) | |
| Suggested Engine Horsepower | 360 – 600 | |
| Scraper Weight Distribution | Tongue | 25% |
| Wheels | 75% | |
| Number of Tires | 6 | |
| Tire Size | 20.5 x 25 | |
| Floor Thickness | 3” (76mm) | |
| Reversible Cutting Edges | Yes | |
| Frost Bit | Optional | |
| Tandem Ready | Optional | |
| Loading Type | Direct | |
| Laser/GPS Adaptable | Yes | |
| Laser Receiver Platform | Optional | |
| Hitch Type | Yoke | |
| Special Tractor Drawbar | Required | |
*Engine horsepowers are suggested ranges and vary according to soil conditions and weight added to scraper.
NOTE: This scraper requires hydraulic control. Two rear tractor hydraulic circuits required for scraper operation.
